Delivered a complete seven-document electrical design package across multiple packaged ammonia chiller system variants, achieving 100% UL508A compliance while reducing documentation time by 35%.
The client, a manufacturer of packaged ammonia chiller systems, required a complete electrical design package across multiple system variants, each built around a different compressor motor rating. The challenge was to maintain consistency of components, UL508A/NEC compliance, and manufacturing accuracy across every variation — without duplicating engineering effort for each.

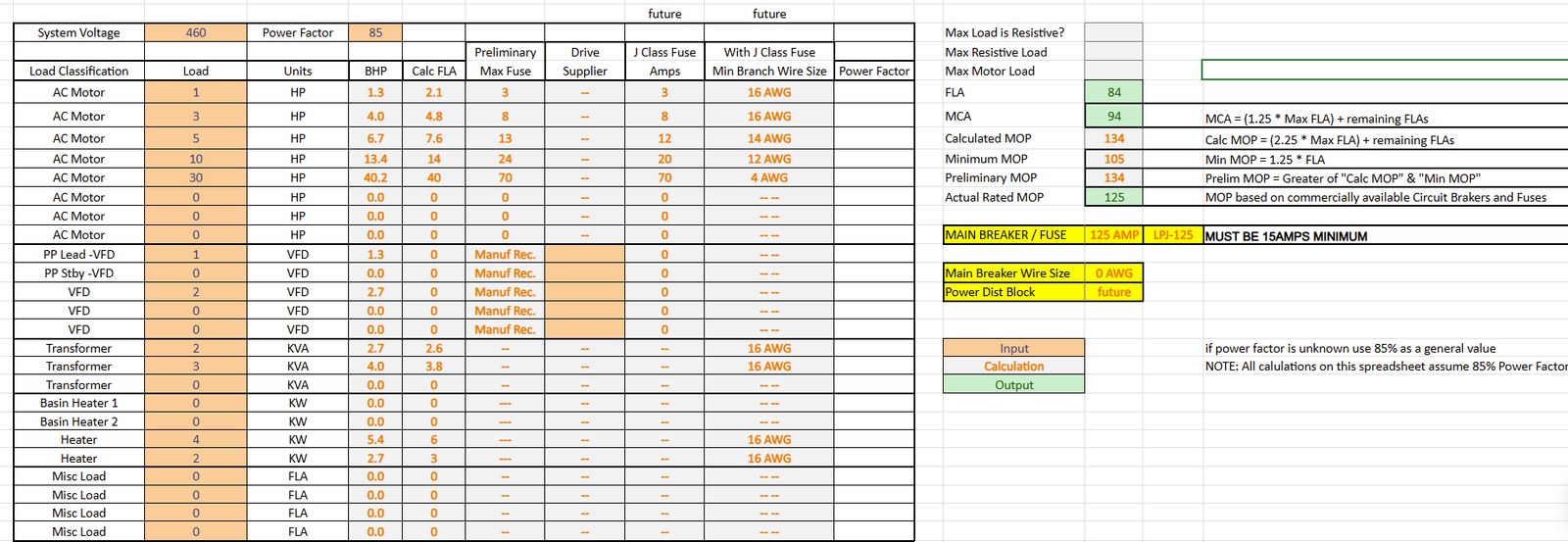

The engineering requirement called for seven interconnected design documents per system variant: a load list analysis, a tailored bill of materials, a Short Circuit Current Rating (SCCR) analysis validated against fault currents up to 65kA, heat load calculations for panel ventilation, a cable and wire schedule, General Assembly drawings, and detailed wiring diagrams.
Each document needed to build logically on the last — from load requirements through component selection, safety validation, thermal management, and finally full wiring documentation — so that production teams had a complete, standards-compliant roadmap for panel construction and system installation for every compressor rating variant.
Successful electrical documentation for packaged ammonia chiller systems demands more than individual drawings — it requires a fully coordinated design package that carries consistency, safety validation, and compliance across every system variant. As part of its electrical design and drafting services, Asset-Eyes delivered a complete seven-document package spanning load analysis, bill of materials, SCCR validation, heat load calculations, cable scheduling, GA drawings, and wiring diagrams — achieving 100% UL508A compliance across all variants while reducing documentation time by 35% and giving production teams a clear, error-resistant roadmap for assembly and installation.
